PLEASE NOTE - IF YOUR FRAMES ARE NOT SUFFICIENTLY DRAWN OUT PASSED THE WOODEN FRAME YOU WILL REQUIRE TO TAKE SOME OF THE SMALL STAINLESS STEEL CUTTING DISCS OFF THE SHAFTS SO THEY FIT INSIDE THE WOODWORK OF THE SIDE BARS.

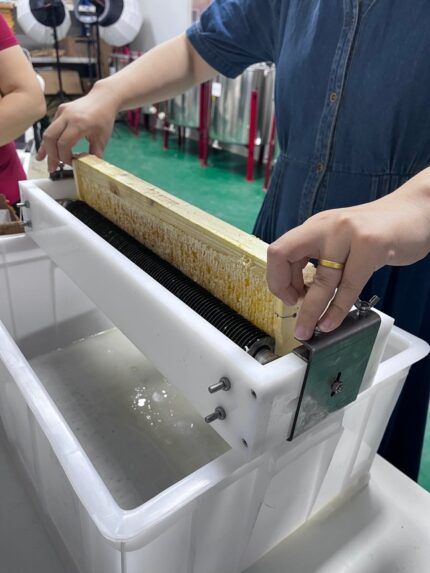

A simple manual uncapping machine, push the BS National frame down through the cutters and pull back out, both sides of the frame will be uncapped and ready to spin in your extractor.
Comes with a plastic tank and plastic tap to collect any honey that drips off the blade.
Material: High-density polythene Body
Blade: 304 Stainless Steel,
Suitable for frames,
Length of bottom bar 448mm,
Thickness of honeycomb 16-37mm,
Depth of cutting 3mm,
Capacity about 3-4 frames a minute uncapping both sides at the same time,
no electricity or heat required.
A stainless steel bucket which is placed under the uncapping tray outlet, as the honey cools the wax floats on top of the honey, honey can now be poured from the spout.

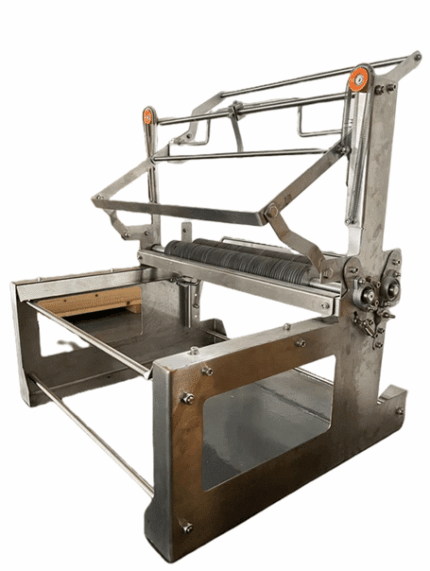

Stainless Steel Manual Uncapping Machine, simply hold the frame above the rollers push down on the handle the capped frame will pass between the blades then press the bottom handle to move the frame forward, as simple as that!
1, Material of blade: 304 stainless steel
2, Suitable honeycomb thickness:Ā 8-34mm
3, Cutting depth: 3mm
4, Uncapping capacity: 8pcs/minute
5, Holding frames after uncapping: 10pcs
6, Suitable for all sizes of BS National frames (will not take 14x12 frames)
